Engraved logo buttons are one of the most recognisable ways for a brand to sign a garment, yet "engraved" is used in supplier conversations to describe quite different processes. An embossed logo is cast or stamped with the button, a debossed logo is pressed inwards, laser engraving is applied after plating, and enamel fills recesses with colour. Each technique has its own look, its own minimum detail and its own economics. Here is how to choose.
The four main techniques at a glance
1. Cast relief
The button is die-cast from zinc alloy in a steel mould with the logo already cut into it. The result is a raised (or combined raised and recessed) logo with real depth, which is then polished and plated. This is the technique for crested buttons, monograms with fine outlines and three-dimensional motifs.
2. Stamping: emboss and deboss
For stamped buttons the logo is pressed into sheet metal such as brass, copper, iron or aluminium. Embossed means raised; debossed means recessed. Most jeans buttons, rivets and snap fasteners are made this way: the cap is thin metal and a die forms the logo. It needs a tool, but the unit price is low.
3. Laser engraving
A laser removes a thin layer of plating or metal and draws the logo onto a finished button. No mould is needed, which makes it attractive for small runs, personalisation and test collections. The logo is flat, with no depth, and usually shows the colour of the base metal beneath the plating.
4. Enamel (soft or hard)
Enamel is not a standalone method but an upgrade: recessed areas of a cast or stamped button are filled with coloured enamel. That way the logo can appear in brand colours, such as black on gold or red on silver.
Metal buttons with logo 0076 Col 101926 – 18 mm with matte grey finish

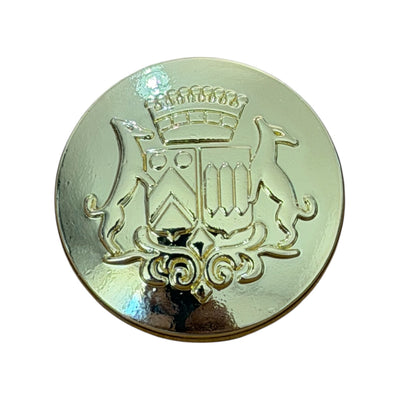

Gold buttons MC 2110 Col E109 – 22 mm with crest for suits and coats
Metal coat of arms buttons 6-Z538 Col 292 – Gun Metal 22 mm with shankComparison table
| Criterion | Cast relief | Stamped emboss/deboss | Laser engraving | Enamel |
|---|---|---|---|---|
| Look | Dimensional, premium | Clean relief, shallower | Flat, high contrast | Coloured |
| Setup cost | Mould (highest) | Die | None | Base technique + colour |
| Unit price | Medium | Low | Low for small runs | Higher (hand work) |
| Minimum detail | Very fine | Medium, simple shapes | Fine, but 2D only | Needs metal dividing walls |
| Sweet-spot quantity | A few hundred and up | Above ~500 pcs | Tens to hundreds | Medium and large runs |
| Durability | Excellent | Excellent | Good, depends on plating | Good; avoid hard knocks |
What each technique costs, roughly
Benchmarks from international manufacturers are useful as a frame of reference. Embossing typically involves a tooling charge in the region of 130–150 EUR and pays off above roughly 500 pieces, while laser engraving is priced per piece, at a few euro cents, with no setup fee. A mould for a custom cast button usually costs a few dozen euros and, with most suppliers, is not charged again on repeat orders. Treat these as orientation figures rather than a quote; the real price depends on size, alloy and finish.
Rule of thumb: if you plan repeat runs, a mould or die pays for itself. If you are testing the market with 50–200 pieces, start with laser.
How small can the logo be?
Engraved and debossed logos reproduce simple text and shapes well on buttons from about 12 mm in diameter upwards. Below that size:
- avoid thin serif typefaces and lines under 0.3 mm;
- leave at least 0.4–0.5 mm between letters;
- use a monogram or initial instead of the full brand name;
- with enamel, every coloured field must be enclosed by a metal edge.
On 9–11 mm shirt buttons a single initial or simple symbol works best. On a 25 mm coat button you can afford a crest with lettering around the rim.
How the logo looks after plating
The finish changes how a logo reads more than most people expect. With antique brass and antique silver, recesses are darkened and high points polished, so the logo pops without any enamel. With bright gold or nickel, relief only shows in raking light. On matte black oxide, laser engraving gives the strongest contrast because it reveals the bright metal underneath.
A decision in three questions
- How many pieces will you order now and over the next year? Under 200: laser. 200–500: stamping or casting if repeats are likely. Over 500: invest in a mould or die.
- What look do you want? Depth and weight: casting. Denim, utility character: stamping. Minimal and graphic: laser. Brand colour: enamel.
- What is the product? Jeans buttons, rivets and snaps are almost always stamped. Jacket and coat buttons are cast. Personalised runs and gifts suit laser.
Preparing your logo file
Whatever the technique, the manufacturer works from vector outlines. Before sending your file, convert all text to curves (outlines) so the typeface cannot be lost, and remove gradients, drop shadows and transparency effects, because metal cannot reproduce them. Supply the logo in a single colour, solid black on white. If you want enamel, send a separate version with each colour labelled by its Pantone reference. State the intended logo size in millimetres relative to the button diameter, for example a 12 mm logo on a 20 mm button. It also helps to mark which areas should be raised and which recessed, especially on a crest with several levels. The cleaner the file, the fewer rounds of drawing corrections and the sooner you will hold a sample in your hand.
Common mistakes
- Sending the logo only as a JPG. Moulds and dies need a vector file (AI, PDF, SVG).
- Expecting the same detail on 12 mm that you get on 25 mm.
- Choosing multi-colour enamel on a small button, where colours merge visually.
- Skipping an approved sample before the bulk run.
How Bul-tex works
Bul-tex manufactures and supplies garment trims and accepts custom orders for logo metal buttons, snap fasteners and eyelets. We make the logo on metal buttons with a mould – raised or recessed; the mould is a one-time cost and the relief is crisp and durable. If you are unsure which option fits, send us your logo and quantity via the contact page and we will suggest an option. Ready-made crested and enamel designs are in our buttons collection, and you can read more about the process in our manufacturing articles.
