Laser engraved logo buttons are one of the most affordable ways for a small label to look finished and considered. Your mark sits on every shirt, cardigan and coat without adding weight, peeling off or relying on ink that fades in the wash. On natural materials such as wood, corozo and coconut, laser engraving is a particularly good fit: the beam doesn't print anything, it vaporises a very thin layer of the surface and leaves a permanent recessed mark. Below we walk through how it's done, compare the three materials and give you a practical artwork checklist.
How it's made: laser engraving step by step
- Choosing the blank. You start with a plain button in a set model, diameter and hole configuration. Flat buttons with a wide centre give the largest logo area; domed buttons or those with a raised rim limit it.
- Preparing vector artwork. The logo is converted to outlines (SVG, AI, PDF or EPS) and scaled to the real engraving field, for example a 12 mm circle on an 18 mm button.
- Positioning. Buttons are laid into a jig so each one sits in exactly the same spot under the beam. The precision of that jig decides whether every logo is centred and aligned the same way relative to the holes.
- Test runs. Power, speed and number of passes are dialled in on a few test pieces. The goal is clean depth with no scorching at the edges.
- Production run and cleaning. After engraving, the dust from the vaporised material is removed; on some models the surface is re-polished or re-lacquered.
- Inspection. Each batch is checked for centring, legibility of the finest details and any cracking around the holes.
Which material gives the sharpest detail
Corozo and wood produce the crispest laser engraving. Corozo, the vegetable ivory cut from the tagua palm nut, is dense and uniform, so lines stay clean, and on a dyed button the engraved area exposes the paler core underneath, giving you natural contrast for free. Wood darkens where the laser hits, so the logo comes out in a warm brown tone. Coconut shell is more fibrous, so detail is slightly softer, but the result has a hand-crafted character that suits eco collections very well.
| Material | Detail sharpness | Engraving colour | Works well for |
|---|---|---|---|
| Corozo | Very high | Lighter than the dyed surface | Shirts, overshirts, knitwear, premium lines |
| Wood | High | Darker, brown | Kidswear, cardigans, linen and cotton pieces |
| Coconut | Medium, softer | Darker, with visible texture | Eco ranges, coats, summer garments |

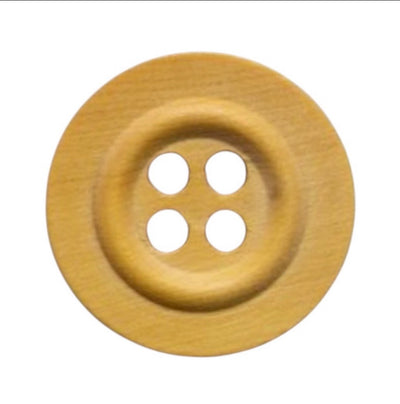

To see what engraved coconut looks like, browse our coconut buttons, which include a laser-engraved model. Blanks in corozo in a range of colours and wooden buttons from 15 to 28 mm are a good starting point when choosing your base.
Minimum line width and text size
Technically a laser can resolve detail of around 0.1 mm. In practice that is the limit, not the recommendation. A button gets washed, ironed and rubbed through a buttonhole thousands of times, and a line that thin quickly loses legibility. Rules that actually work:
- Minimum line weight: 0.3 mm; for coconut, aim for 0.4 to 0.5 mm.
- Minimum letter height: roughly 1.5 to 2 mm for capitals on a 15 to 18 mm button.
- Spacing between elements: at least 0.3 mm, otherwise neighbouring strokes merge.
- Safe area: keep 1.5 to 2 mm clear of the rim and around the holes.
Tip: print your logo at actual size on paper and look at it from 50 cm away. If you can't read it there, you won't read it on the button.
Artwork checklist
- Vector file with all text converted to outlines.
- Solid fills and lines only: no gradients, drop shadows or transparency. A laser works in on/off terms, so tonal transitions turn into blotches.
- A single-colour version of the logo; if your mark has fine ornaments, prepare a simplified variant.
- Orientation relative to the holes (for instance, lettering running horizontally between two holes).
- Positive or negative: engrave the mark itself, or engrave the background and leave the mark raised.
- Button model, size, colour and quantity per size.
Engraving or another technique?
Besides laser engraving, a logo can be embossed (on metal), moulded in a tool (on polyester and metal) or printed. Engraving has clear advantages for small brands: no expensive mould, short runs are feasible, artwork changes are quick, and the result is durable because there is no paint to rub off. The trade-off is that the engraving is always one colour, dictated by the material. If you need a multi-colour logo or a metallic finish, the usual route is moulded or custom metal buttons.
Cost and minimums: what drives them
The price of an engraved button has three parts: the blank (material and size), the set-up (artwork, jig, test runs) and laser time per piece. Set-up is a one-off, so it weighs far more per button on 200 pieces than on 2,000. Minimum order quantities vary widely across the industry: corozo is often sold in runs per model and size, wood typically starts from several hundred pieces, and some workshops accept very small orders. The things that push cost up most often are:
- many different sizes carrying the same logo, since each size needs rescaling and its own jig;
- engraving on both faces;
- domed or uneven buttons where the beam focus has to be corrected;
- extra lacquering or tinting after engraving.
To keep costs down, use one size for the front and a smaller one for cuffs, with the same simplified logo scaled proportionally.
How to order
Bul-tex manufactures and supplies garment trims for brands and accepts custom orders. Send us your vector logo, preferred material, sizes and quantities through the contact page and we'll come back with concrete options and a sample for approval. If you're building a full branded trim package with labels, hang tags and buttons, our other articles on manufacturing and branding are worth a read.
